Tutorial 22: Render to Texture

This tutorial will cover how to implement render to texture in DirectX 11. The code in this tutorial is based on the code in the model tutorial and the bitmap tutorial.

Render to texture allows you to render your scene to a texture resource instead of just the back buffer. You can then use that texture resource in your current scene to achieve numerous effects. For example you could render the scene from a different camera angle and then use that texture in a mirror or video screen. You can also do some processing on that texture or use a special shader to render it to achieve even more unique effects. The list of things you can do with render to texture is endless and is the reason why it is one of the most powerful tools in DirectX 11.

However you will notice that render to texture is very expensive as you are now rendering your scene multiple times instead of just once. This is where most 3D engines will start to lose their speed, but the effects that can be done make it worth the cost.

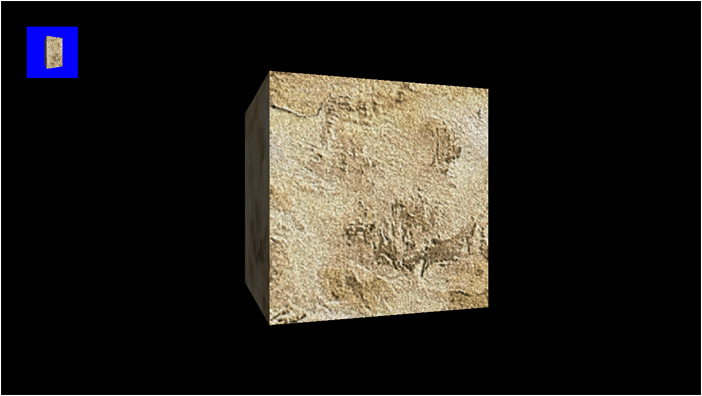

For this tutorial we will render a spinning 3D cube model to a texture first. We will then render that texture as a 2D bitmap to the upper left corner of the screen. We will also render the 3D cube as normal to the screen. The render to texture will be given a blue background so you can see exactly what is the render to texture. We will start the tutorial by looking at the updated frame work.


Framework

Everything in the frame work should look familiar to you with the exception of RenderTextureClass and DebugWindowClass. RenderTextureClass is the new class that encapsulates the DirectX 11 render to texture capabilities. DebugWindowClass is the BitmapClass from the 2D rendering tutorials renamed, however it no longer has a texture since we will pass it the render to texture to use instead. I call it DebugWindowClass since I usually have a couple of them on screen to help me debug new shaders or multipass effects I am working on that require render to texture. It always helps to see effects at each stage instead of guessing where you might be making mistakes.


Rendertextureclass.h

The RenderTextureClass allows you to set it as the render target instead of the back buffer. It also allows you to retrieve the data rendered to it in the form of a ID3D11ShaderResourceView.

////////////////////////////////////////////////////////////////////////////////
// Filename: rendertextureclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _RENDERTEXTURECLASS_H_
#define _RENDERTEXTURECLASS_H_


//////////////
// INCLUDES //
//////////////
#include <d3d11.h>


////////////////////////////////////////////////////////////////////////////////
// Class name: RenderTextureClass
////////////////////////////////////////////////////////////////////////////////
class RenderTextureClass
{
public:
	RenderTextureClass();
	RenderTextureClass(const RenderTextureClass&);
	~RenderTextureClass();

	bool Initialize(ID3D11Device*, int, int);
	void Shutdown();

	void SetRenderTarget(ID3D11DeviceContext*, ID3D11DepthStencilView*);
	void ClearRenderTarget(ID3D11DeviceContext*, ID3D11DepthStencilView*, float, float, float, float);
	ID3D11ShaderResourceView* GetShaderResourceView();

private:
	ID3D11Texture2D* m_renderTargetTexture;
	ID3D11RenderTargetView* m_renderTargetView;
	ID3D11ShaderResourceView* m_shaderResourceView;
};

#endif

Rendertextureclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: rendertextureclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "rendertextureclass.h"

The class constructor will initialize the private pointers to null.

RenderTextureClass::RenderTextureClass()
{
	m_renderTargetTexture = 0;
	m_renderTargetView = 0;
	m_shaderResourceView = 0;
}


RenderTextureClass::RenderTextureClass(const RenderTextureClass& other)
{
}


RenderTextureClass::~RenderTextureClass()
{
}

The Initialize function takes as input the width and height you want to make this render to texture. Important: Remember that if you are rendering your screen you should keep the aspect ratio of this render to texture the same as the aspect ratio of the screen or there will be some size distortion.

The function creates a render target texture by first setting up the description of the texture and then creating that texture. It then uses that texture to setup a render target view so that the texture can be drawn to as a render target. The third and final thing we do is create a shader resource view of that texture so that we can supply the rendered data to calling objects.

bool RenderTextureClass::Initialize(ID3D11Device* device, int textureWidth, int textureHeight)
{
	D3D11_TEXTURE2D_DESC textureDesc;
	HRESULT result;
	D3D11_RENDER_TARGET_VIEW_DESC renderTargetViewDesc;
	D3D11_SHADER_RESOURCE_VIEW_DESC shaderResourceViewDesc;


	// Initialize the render target texture description.
	ZeroMemory(&textureDesc, sizeof(textureDesc));

	// Setup the render target texture description.
	textureDesc.Width = textureWidth;
	textureDesc.Height = textureHeight;
	textureDesc.MipLevels = 1;
	textureDesc.ArraySize = 1;
	textureDesc.Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
	textureDesc.SampleDesc.Count = 1;
	textureDesc.Usage = D3D11_USAGE_DEFAULT;
	textureDesc.BindFlags = D3D11_BIND_RENDER_TARGET | D3D11_BIND_SHADER_RESOURCE;
	textureDesc.CPUAccessFlags = 0;
	textureDesc.MiscFlags = 0;

	// Create the render target texture.
	result = device->CreateTexture2D(&textureDesc, NULL, &m_renderTargetTexture);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the render target view.
	renderTargetViewDesc.Format = textureDesc.Format;
	renderTargetViewDesc.ViewDimension = D3D11_RTV_DIMENSION_TEXTURE2D;
	renderTargetViewDesc.Texture2D.MipSlice = 0;

	// Create the render target view.
	result = device->CreateRenderTargetView(m_renderTargetTexture, &renderTargetViewDesc, &m_renderTargetView);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the shader resource view.
	shaderResourceViewDesc.Format = textureDesc.Format;
	shaderResourceViewDesc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2D;
	shaderResourceViewDesc.Texture2D.MostDetailedMip = 0;
	shaderResourceViewDesc.Texture2D.MipLevels = 1;

	// Create the shader resource view.
	result = device->CreateShaderResourceView(m_renderTargetTexture, &shaderResourceViewDesc, &m_shaderResourceView);
	if(FAILED(result))
	{
		return false;
	}

	return true;
}

Shutdown releases the three interfaces used by the RenderTextureClass.

void RenderTextureClass::Shutdown()
{
	if(m_shaderResourceView)
	{
		m_shaderResourceView->Release();
		m_shaderResourceView = 0;
	}

	if(m_renderTargetView)
	{
		m_renderTargetView->Release();
		m_renderTargetView = 0;
	}

	if(m_renderTargetTexture)
	{
		m_renderTargetTexture->Release();
		m_renderTargetTexture = 0;
	}

	return;
}

The SetRenderTarget function sets the render target view in this class as the current rendering location for all graphics to be rendered to.

void RenderTextureClass::SetRenderTarget(ID3D11DeviceContext* deviceContext, ID3D11DepthStencilView* depthStencilView)
{
	// Bind the render target view and depth stencil buffer to the output render pipeline.
	deviceContext->OMSetRenderTargets(1, &m_renderTargetView, depthStencilView);

	return;
}

ClearRenderTarget mimics the functionality of the D3DClass::BeginScene function except for that it operates on the render target view within this class. This should be called each frame before rendering to this render target view.

void RenderTextureClass::ClearRenderTarget(ID3D11DeviceContext* deviceContext, ID3D11DepthStencilView* depthStencilView,
					   float red, float green, float blue, float alpha)
{
	float color[4];


	// Setup the color to clear the buffer to.
	color[0] = red;
	color[1] = green;
	color[2] = blue;
	color[3] = alpha;

	// Clear the back buffer.
	deviceContext->ClearRenderTargetView(m_renderTargetView, color);

	// Clear the depth buffer.
	deviceContext->ClearDepthStencilView(depthStencilView, D3D11_CLEAR_DEPTH, 1.0f, 0);

	return;
}

The GetShaderResourceView function returns the render to texture data as a shader resource view. This way whatever has been rendered to the render target view can be used as a texture in different shaders that call this function. Where you would normally send a texture into a shader you can instead send a call to this function in its place and the render to texture will be used.

ID3D11ShaderResourceView* RenderTextureClass::GetShaderResourceView()
{
	return m_shaderResourceView;
}

Debugwindowclass.h

The DebugWindowClass is just the BitmapClass renamed and no longer has a TextureClass inside it. The intention is to treat this object as a 2D window that renders the render to texture image on the screen for debugging purposes instead of the regular texture image. The code is exactly the same as the BitmapClass in the 2D rendering tutorial so if you want a more in depth explanation please see that tutorial.

////////////////////////////////////////////////////////////////////////////////
// Filename: debugwindowclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _DEBUGWINDOWCLASS_H_
#define _DEBUGWINDOWCLASS_H_


//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>


////////////////////////////////////////////////////////////////////////////////
// Class name: DebugWindowClass
////////////////////////////////////////////////////////////////////////////////
class DebugWindowClass
{
private:
	struct VertexType
	{
		D3DXVECTOR3 position;
		D3DXVECTOR2 texture;
	};

public:
	DebugWindowClass();
	DebugWindowClass(const DebugWindowClass&);
	~DebugWindowClass();

	bool Initialize(ID3D11Device*, int, int, int, int);
	void Shutdown();
	bool Render(ID3D11DeviceContext*, int, int);

	int GetIndexCount();

private:
	bool InitializeBuffers(ID3D11Device*);
	void ShutdownBuffers();
	bool UpdateBuffers(ID3D11DeviceContext*, int, int);
	void RenderBuffers(ID3D11DeviceContext*);

private:
	ID3D11Buffer *m_vertexBuffer, *m_indexBuffer;
	int m_vertexCount, m_indexCount;
	int m_screenWidth, m_screenHeight;
	int m_bitmapWidth, m_bitmapHeight;
	int m_previousPosX, m_previousPosY;
};

#endif

Debugwindowclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: debugwindowclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "debugwindowclass.h"


DebugWindowClass::DebugWindowClass()
{
	m_vertexBuffer = 0;
	m_indexBuffer = 0;
}


DebugWindowClass::DebugWindowClass(const DebugWindowClass& other)
{
}


DebugWindowClass::~DebugWindowClass()
{
}


bool DebugWindowClass::Initialize(ID3D11Device* device, int screenWidth, int screenHeight, int bitmapWidth, int bitmapHeight)
{
	bool result;


	// Store the screen size.
	m_screenWidth = screenWidth;
	m_screenHeight = screenHeight;

	// Store the size in pixels that this bitmap should be rendered at.
	m_bitmapWidth = bitmapWidth;
	m_bitmapHeight = bitmapHeight;

	// Initialize the previous rendering position to negative one.
	m_previousPosX = -1;
	m_previousPosY = -1;

	// Initialize the vertex and index buffers.
	result = InitializeBuffers(device);
	if(!result)
	{
		return false;
	}

	return true;
}


void DebugWindowClass::Shutdown()
{
	// Shutdown the vertex and index buffers.
	ShutdownBuffers();

	return;
}


bool DebugWindowClass::Render(ID3D11DeviceContext* deviceContext, int positionX, int positionY)
{
	bool result;


	// Re-build the dynamic vertex buffer for rendering to possibly a different location on the screen.
	result = UpdateBuffers(deviceContext, positionX, positionY);
	if(!result)
	{
		return false;
	}

	// Put the vertex and index buffers on the graphics pipeline to prepare them for drawing.
	RenderBuffers(deviceContext);

	return true;
}


int DebugWindowClass::GetIndexCount()
{
	return m_indexCount;
}


bool DebugWindowClass::InitializeBuffers(ID3D11Device* device)
{
	VertexType* vertices;
	unsigned long* indices;
	D3D11_BUFFER_DESC vertexBufferDesc, indexBufferDesc;
	D3D11_SUBRESOURCE_DATA vertexData, indexData;
	HRESULT result;
	int i;


	// Set the number of vertices in the vertex array.
	m_vertexCount = 6;

	// Set the number of indices in the index array.
	m_indexCount = m_vertexCount;

	// Create the vertex array.
	vertices = new VertexType[m_vertexCount];
	if(!vertices)
	{
		return false;
	}

	// Create the index array.
	indices = new unsigned long[m_indexCount];
	if(!indices)
	{
		return false;
	}

	// Initialize vertex array to zeros at first.
	memset(vertices, 0, (sizeof(VertexType) * m_vertexCount));

	// Load the index array with data.
	for(i=0; i<m_indexCount; i++)
	{
		indices[i] = i;
	}

	// Set up the description of the static vertex buffer.
	vertexBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	vertexBufferDesc.ByteWidth = sizeof(VertexType) * m_vertexCount;
	vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
	vertexBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	vertexBufferDesc.MiscFlags = 0;
	vertexBufferDesc.StructureByteStride = 0;

	// Give the subresource structure a pointer to the vertex data.
	vertexData.pSysMem = vertices;
	vertexData.SysMemPitch = 0;
	vertexData.SysMemSlicePitch = 0;

	// Now create the vertex buffer.
	result = device->CreateBuffer(&vertexBufferDesc, &vertexData, &m_vertexBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Set up the description of the static index buffer.
	indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
	indexBufferDesc.ByteWidth = sizeof(unsigned long) * m_indexCount;
	indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
	indexBufferDesc.CPUAccessFlags = 0;
	indexBufferDesc.MiscFlags = 0;
	indexBufferDesc.StructureByteStride = 0;

	// Give the subresource structure a pointer to the index data.
	indexData.pSysMem = indices;
	indexData.SysMemPitch = 0;
	indexData.SysMemSlicePitch = 0;

	// Create the index buffer.
	result = device->CreateBuffer(&indexBufferDesc, &indexData, &m_indexBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Release the arrays now that the vertex and index buffers have been created and loaded.
	delete [] vertices;
	vertices = 0;

	delete [] indices;
	indices = 0;

	return true;
}


void DebugWindowClass::ShutdownBuffers()
{
	// Release the index buffer.
	if(m_indexBuffer)
	{
		m_indexBuffer->Release();
		m_indexBuffer = 0;
	}

	// Release the vertex buffer.
	if(m_vertexBuffer)
	{
		m_vertexBuffer->Release();
		m_vertexBuffer = 0;
	}

	return;
}


bool DebugWindowClass::UpdateBuffers(ID3D11DeviceContext* deviceContext, int positionX, int positionY)
{
	float left, right, top, bottom;
	VertexType* vertices;
	D3D11_MAPPED_SUBRESOURCE mappedResource;
	VertexType* verticesPtr;
	HRESULT result;


	// If the position we are rendering this bitmap to has not changed then don't update the vertex buffer since it
	// currently has the correct parameters.
	if((positionX == m_previousPosX) && (positionY == m_previousPosY))
	{
		return true;
	}

	// If it has changed then update the position it is being rendered to.
	m_previousPosX = positionX;
	m_previousPosY = positionY;

	// Calculate the screen coordinates of the left side of the bitmap.
	left = (float)((m_screenWidth / 2) * -1) + (float)positionX;

	// Calculate the screen coordinates of the right side of the bitmap.
	right = left + (float)m_bitmapWidth;

	// Calculate the screen coordinates of the top of the bitmap.
	top = (float)(m_screenHeight / 2) - (float)positionY;

	// Calculate the screen coordinates of the bottom of the bitmap.
	bottom = top - (float)m_bitmapHeight;

	// Create the vertex array.
	vertices = new VertexType[m_vertexCount];
	if(!vertices)
	{
		return false;
	}

	// Load the vertex array with data.
	// First triangle.
	vertices[0].position = D3DXVECTOR3(left, top, 0.0f);  // Top left.
	vertices[0].texture = D3DXVECTOR2(0.0f, 0.0f);

	vertices[1].position = D3DXVECTOR3(right, bottom, 0.0f);  // Bottom right.
	vertices[1].texture = D3DXVECTOR2(1.0f, 1.0f);

	vertices[2].position = D3DXVECTOR3(left, bottom, 0.0f);  // Bottom left.
	vertices[2].texture = D3DXVECTOR2(0.0f, 1.0f);

	// Second triangle.
	vertices[3].position = D3DXVECTOR3(left, top, 0.0f);  // Top left.
	vertices[3].texture = D3DXVECTOR2(0.0f, 0.0f);

	vertices[4].position = D3DXVECTOR3(right, top, 0.0f);  // Top right.
	vertices[4].texture = D3DXVECTOR2(1.0f, 0.0f);

	vertices[5].position = D3DXVECTOR3(right, bottom, 0.0f);  // Bottom right.
	vertices[5].texture = D3DXVECTOR2(1.0f, 1.0f);

	// Lock the vertex buffer so it can be written to.
	result = deviceContext->Map(m_vertexBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the vertex buffer.
	verticesPtr = (VertexType*)mappedResource.pData;

	// Copy the data into the vertex buffer.
	memcpy(verticesPtr, (void*)vertices, (sizeof(VertexType) * m_vertexCount));

	// Unlock the vertex buffer.
	deviceContext->Unmap(m_vertexBuffer, 0);

	// Release the vertex array as it is no longer needed.
	delete [] vertices;
	vertices = 0;

	return true;
}


void DebugWindowClass::RenderBuffers(ID3D11DeviceContext* deviceContext)
{
	unsigned int stride;
	unsigned int offset;


	// Set vertex buffer stride and offset.
	stride = sizeof(VertexType);
	offset = 0;

	// Set the vertex buffer to active in the input assembler so it can be rendered.
	deviceContext->IASetVertexBuffers(0, 1, &m_vertexBuffer, &stride, &offset);

	// Set the index buffer to active in the input assembler so it can be rendered.
	deviceContext->IASetIndexBuffer(m_indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	// Set the type of primitive that should be rendered from this vertex buffer, in this case triangles.
	deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	return;
}

D3dclass.h

The D3DClass has been slightly modified.

////////////////////////////////////////////////////////////////////////////////
// Filename: d3dclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _D3DCLASS_H_
#define _D3DCLASS_H_


/////////////
// LINKING //
/////////////
#pragma comment(lib, "dxgi.lib")
#pragma comment(lib, "d3d11.lib")
#pragma comment(lib, "d3dx11.lib")
#pragma comment(lib, "d3dx10.lib")


//////////////
// INCLUDES //
//////////////
#include <dxgi.h>
#include <d3dcommon.h>
#include <d3d11.h>
#include <d3dx10math.h>


////////////////////////////////////////////////////////////////////////////////
// Class name: D3DClass
////////////////////////////////////////////////////////////////////////////////
class D3DClass
{
public:
	D3DClass();
	D3DClass(const D3DClass&);
	~D3DClass();

	bool Initialize(int, int, bool, HWND, bool, float, float);
	void Shutdown();

	void BeginScene(float, float, float, float);
	void EndScene();

	ID3D11Device* GetDevice();
	ID3D11DeviceContext* GetDeviceContext();

	void GetProjectionMatrix(D3DXMATRIX&);
	void GetWorldMatrix(D3DXMATRIX&);
	void GetOrthoMatrix(D3DXMATRIX&);

	void TurnZBufferOn();
	void TurnZBufferOff();

	void TurnOnAlphaBlending();
	void TurnOffAlphaBlending();

There is now a new function called GetDepthStencilView for getting access to the depth stencil view and a new function called SetBackBufferRenderTarget for setting the back buffer render target in this class to be the active one.

	ID3D11DepthStencilView* GetDepthStencilView();
	void SetBackBufferRenderTarget();

private:
	bool m_vsync_enabled;

	IDXGISwapChain* m_swapChain;
	ID3D11Device* m_device;
	ID3D11DeviceContext* m_deviceContext;
	ID3D11RenderTargetView* m_renderTargetView;
	ID3D11Texture2D* m_depthStencilBuffer;
	ID3D11DepthStencilState* m_depthStencilState;
	ID3D11DepthStencilView* m_depthStencilView;
	ID3D11RasterizerState* m_rasterState;

	D3DXMATRIX m_projectionMatrix;
	D3DXMATRIX m_worldMatrix;
	D3DXMATRIX m_orthoMatrix;

	ID3D11DepthStencilState* m_depthDisabledStencilState;
	ID3D11BlendState* m_alphaEnableBlendingState;
	ID3D11BlendState* m_alphaDisableBlendingState;
};

#endif

D3dclass.cpp

I will just cover the functions that have changed in this class since the previous tutorial.

////////////////////////////////////////////////////////////////////////////////
// Filename: d3dclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "d3dclass.h"

GetDepthStencilView gives calling objects access to the depth stencil view.

ID3D11DepthStencilView* D3DClass::GetDepthStencilView()
{
	return m_depthStencilView;
}

The SetBackBufferRenderTarget function will set the back buffer in this class as the current render target. This will usually be called after the render to texture has completed and we want to render the scene to the back buffer again.

void D3DClass::SetBackBufferRenderTarget()
{
	// Bind the render target view and depth stencil buffer to the output render pipeline.
	m_deviceContext->OMSetRenderTargets(1, &m_renderTargetView, m_depthStencilView);

	return;
}

Graphicsclass.h

////////////////////////////////////////////////////////////////////////////////
// Filename: graphicsclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _GRAPHICSCLASS_H_
#define _GRAPHICSCLASS_H_


/////////////
// GLOBALS //
/////////////
const bool FULL_SCREEN = true;
const bool VSYNC_ENABLED = true;
const float SCREEN_DEPTH = 1000.0f;
const float SCREEN_NEAR = 0.1f;

We have includes from the 3D model tutorial for rendering the 3D cube as well as includes to render the debug window and render to texture.

///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "d3dclass.h"
#include "cameraclass.h"
#include "modelclass.h"
#include "lightshaderclass.h"
#include "lightclass.h"
#include "rendertextureclass.h"
#include "debugwindowclass.h"
#include "textureshaderclass.h"


////////////////////////////////////////////////////////////////////////////////
// Class name: GraphicsClass
////////////////////////////////////////////////////////////////////////////////
class GraphicsClass
{
public:
	GraphicsClass();
	GraphicsClass(const GraphicsClass&);
	~GraphicsClass();

	bool Initialize(int, int, HWND);
	void Shutdown();
	bool Frame();
	bool Render();

Notice that we have two new private render functions. Since we are splitting the render into two passes (once for render to texture, once for normal rendering) we needed two functions.

private:
	bool RenderToTexture();
	bool RenderScene();

private:
	D3DClass* m_D3D;
	CameraClass* m_Camera;
	ModelClass* m_Model;
	LightShaderClass* m_LightShader;
	LightClass* m_Light;
	RenderTextureClass* m_RenderTexture;
	DebugWindowClass* m_DebugWindow;
	TextureShaderClass* m_TextureShader;
};

#endif

Graphicsclass.cpp

I will just cover the functions that have changed in this class since the previous tutorial.

////////////////////////////////////////////////////////////////////////////////
// Filename: graphicsclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "graphicsclass.h"

The class constructor initializes the private member variables to null.

GraphicsClass::GraphicsClass()
{
	m_D3D = 0;
	m_Camera = 0;
	m_Model = 0;
	m_LightShader = 0;
	m_Light = 0;
	m_RenderTexture = 0;
	m_DebugWindow = 0;
	m_TextureShader = 0;
}


bool GraphicsClass::Initialize(int screenWidth, int screenHeight, HWND hwnd)
{
	bool result;


	// Create the Direct3D object.
	m_D3D = new D3DClass;
	if(!m_D3D)
	{
		return false;
	}

	// Initialize the Direct3D object.
	result = m_D3D->Initialize(screenWidth, screenHeight, VSYNC_ENABLED, hwnd, FULL_SCREEN, SCREEN_DEPTH, SCREEN_NEAR);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize Direct3D.", L"Error", MB_OK);
		return false;
	}

	// Create the camera object.
	m_Camera = new CameraClass;
	if(!m_Camera)
	{
		return false;
	}

	// Create the model object.
	m_Model = new ModelClass;
	if(!m_Model)
	{
		return false;
	}

	// Initialize the model object.
	result = m_Model->Initialize(m_D3D->GetDevice(), L"../Engine/data/seafloor.dds", "../Engine/data/cube.txt");
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the model object.", L"Error", MB_OK);
		return false;
	}

	// Create the light shader object.
	m_LightShader = new LightShaderClass;
	if(!m_LightShader)
	{
		return false;
	}

	// Initialize the light shader object.
	result = m_LightShader->Initialize(m_D3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the light shader object.", L"Error", MB_OK);
		return false;
	}

	// Create the light object.
	m_Light = new LightClass;
	if(!m_Light)
	{
		return false;
	}

	// Initialize the light object.
	m_Light->SetDiffuseColor(1.0f, 1.0f, 1.0f, 1.0f);
	m_Light->SetDirection(0.0f, 0.0f, 1.0f);

We create and initialize the new render to texture object here. Notice for the size of the texture I send in the screen width and height as I want to render the entire screen evenly to a texture of the same size.

	// Create the render to texture object.
	m_RenderTexture = new RenderTextureClass;
	if(!m_RenderTexture)
	{
		return false;
	}

	// Initialize the render to texture object.
	result = m_RenderTexture->Initialize(m_D3D->GetDevice(), screenWidth, screenHeight);
	if(!result)
	{
		return false;
	}

Here we create and initialize a new debug window object. Notice I have made the window size 100x100. There will obviously be some distortion since we will be mapping a full screen image down to a 100x100 texture. To fix the aspect ratio (if it is important for your purposes) then just make sure the debug window is sized smaller but with the same aspect ratio.

	// Create the debug window object.
	m_DebugWindow = new DebugWindowClass;
	if(!m_DebugWindow)
	{
		return false;
	}

	// Initialize the debug window object.
	result = m_DebugWindow->Initialize(m_D3D->GetDevice(), screenWidth, screenHeight, 100, 100);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the debug window object.", L"Error", MB_OK);
		return false;
	}

	// Create the texture shader object.
	m_TextureShader = new TextureShaderClass;
	if(!m_TextureShader)
	{
		return false;
	}

	// Initialize the texture shader object.
	result = m_TextureShader->Initialize(m_D3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the texture shader object.", L"Error", MB_OK);
		return false;
	}

	return true;
}


void GraphicsClass::Shutdown()
{
	// Release the texture shader object.
	if(m_TextureShader)
	{
		m_TextureShader->Shutdown();
		delete m_TextureShader;
		m_TextureShader = 0;
	}

We release the new DebugWindowClass and RenderTextureClass objects here in the Shutdown function.

	// Release the debug window object.
	if(m_DebugWindow)
	{
		m_DebugWindow->Shutdown();
		delete m_DebugWindow;
		m_DebugWindow = 0;
	}

	// Release the render to texture object.
	if(m_RenderTexture)
	{
		m_RenderTexture->Shutdown();
		delete m_RenderTexture;
		m_RenderTexture = 0;
	}

	// Release the light object.
	if(m_Light)
	{
		delete m_Light;
		m_Light = 0;
	}

	// Release the light shader object.
	if(m_LightShader)
	{
		m_LightShader->Shutdown();
		delete m_LightShader;
		m_LightShader = 0;
	}

	// Release the model object.
	if(m_Model)
	{
		m_Model->Shutdown();
		delete m_Model;
		m_Model = 0;
	}

	// Release the camera object.
	if(m_Camera)
	{
		delete m_Camera;
		m_Camera = 0;
	}

	// Release the Direct3D object.
	if(m_D3D)
	{
		m_D3D->Shutdown();
		delete m_D3D;
		m_D3D = 0;
	}

	return;
}


bool GraphicsClass::Render()
{
	D3DXMATRIX worldMatrix, viewMatrix, orthoMatrix;
	bool result;

The first pass of our render is to a texture now.

	// Render the entire scene to the texture first.
	result = RenderToTexture();
	if(!result)
	{
		return false;
	}

The second pass of our render is to the back buffer as normal.

	// Clear the buffers to begin the scene.
	m_D3D->BeginScene(0.0f, 0.0f, 0.0f, 1.0f);

	// Render the scene as normal to the back buffer.
	result = RenderScene();
	if(!result)
	{
		return false;
	}

Then after the rendering is complete we render the 2D debug window so we can see the render to texture as a 2D image at the 50x50 pixel location.

	// Turn off the Z buffer to begin all 2D rendering.
	m_D3D->TurnZBufferOff();

	// Get the world, view, and ortho matrices from the camera and d3d objects.
	m_D3D->GetWorldMatrix(worldMatrix);
	m_Camera->GetViewMatrix(viewMatrix);
	m_D3D->GetOrthoMatrix(orthoMatrix);

	// Put the debug window vertex and index buffers on the graphics pipeline to prepare them for drawing.
	result = m_DebugWindow->Render(m_D3D-GetDeviceContext(), 50, 50);
	if(!result)
	{
		return false;
	}

	// Render the debug window using the texture shader.
	result = m_TextureShader->Render(m_D3D->GetDeviceContext(), m_DebugWindow->GetIndexCount(), worldMatrix, viewMatrix,
					 orthoMatrix, m_RenderTexture->GetShaderResourceView());
	if(!result)
	{
		return false;
	}


	// Turn the Z buffer back on now that all 2D rendering has completed.
	m_D3D->TurnZBufferOn();

	// Present the rendered scene to the screen.
	m_D3D->EndScene();

	return true;
}

RenderToTexture is one of the new private rendering functions. It sets the render to texture view as the location to render all graphics too. After the scene is rendered it sets the render location back to the normal back buffer using the D3DClass object.

bool GraphicsClass::RenderToTexture()
{
	bool result;


	// Set the render target to be the render to texture.
	m_RenderTexture->SetRenderTarget(m_D3D->GetDeviceContext(), m_D3D->GetDepthStencilView());

Clear the render to texture background to blue so we can differentiate it from the rest of the normal scene.

	// Clear the render to texture.
	m_RenderTexture->ClearRenderTarget(m_D3D->GetDeviceContext(), m_D3D->GetDepthStencilView(), 0.0f, 0.0f, 1.0f, 1.0f);

	// Render the scene now and it will draw to the render to texture instead of the back buffer.
	result = RenderScene();
	if(!result)
	{
		return false;
	}

	// Reset the render target back to the original back buffer and not the render to texture anymore.
	m_D3D->SetBackBufferRenderTarget();

	return;
}

The RenderScene function is another one of the new private rendering functions. It renders the entire scene in one function so we can just set where we want the scene rendered to and then call this function. In this tutorial we call this function once in the RenderToTexture function to render the scene to a texture, and then we call it again in the Render function to render it to the back buffer as normal.

bool GraphicsClass::RenderScene()
{
	D3DXMATRIX worldMatrix, viewMatrix, projectionMatrix;
	bool result;
	static float rotation = 0.0f;


	// Generate the view matrix based on the camera's position.
	m_Camera->Render();

	// Get the world, view, and projection matrices from the camera and d3d objects.
	m_D3D->GetWorldMatrix(worldMatrix);
	m_Camera->GetViewMatrix(viewMatrix);
	m_D3D->GetProjectionMatrix(projectionMatrix);

	// Update the rotation variable each frame.
	rotation += (float)D3DX_PI * 0.005f;
	if(rotation > 360.0f)
	{
		rotation -= 360.0f;
	}

	D3DXMatrixRotationY(&worldMatrix, rotation);

	// Put the model vertex and index buffers on the graphics pipeline to prepare them for drawing.
	m_Model->Render(m_D3D-GetDeviceContext());

	// Render the model using the light shader.
	result = m_LightShader->Render(m_D3D->GetDeviceContext(), m_Model->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
				       m_Model->GetTexture(), m_Light->GetDirection(), m_Light->GetDiffuseColor());
	if(!result)
	{
		return false;
	}

	return;
}

Summary

Now you should understand the basics of how to use render to texture as well as have an idea of how to implement the same concept in your projects to match your graphical needs.


To Do Exercises

1. Recompile the project and run it. You should get a spinning cube as well as a smaller spinning cube on a blue background showing the render to texture effect.

2. Modify the debug window to ensure the aspect ratio is correct for different monitor resolutions.

3. Change the 3D scene and ensure it renders correctly to a render to texture object.

4. Change the camera angle at which the render to texture sees your 3D scene.

5. Use the render to texture as a shader input to one of your own shaders and modify the result (maybe add noise, scan lines, or something easy like that).


Source Code

Visual Studio 2008 Project: dx11tut22.zip

Source Only: dx11src22.zip

Executable Only: dx11exe22.zip

Back to Tutorial Index
